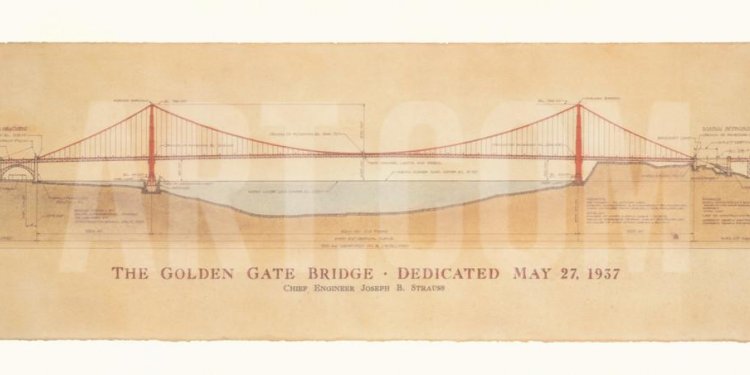

Golden Gate Bridge Architecture Drawings


  • Level: 75 yards above water
  • Length: 2, 737 m
  • Weight: 80, 470 tons
  • Work: as yet not known, but 11 employees passed away during construction.
  • Project Timeline: 4 many years.
  • Information: Metallic
  • Capacity: around 2002, 1700 million automobiles crossed the bridge.

Area

The connection was built-in the North san francisco bay area Bay and links the town with Marin County, Ca, USA.

Concept

In 1868 there was clearly currently a regular ferry solution between San Francisco and Marin County, the second investors thought it revalue properties if offered method of transportation much more useful and efficient.

Suspended Bridge

The suspension bridges have actually two main pillars supporting the whole framework. From these pillars arise cables that offer the fat of this roadway. Each pillar aids the extra weight associated with part of connection from the abutment towards the end, and area of connection through the abutment to the center associated with connection. The dwelling is balanced because the body weight of every side of the bunch is offset by the body weight of this other side. Imagine two scales (associated with the two meals) we put alongside each other on the web. At both machines we place half a brick regarding the end plate, and a complete brick on the meals that stay in the downtown, so that one half for the entire stone resting on saucer of a balance, while the spouse on dish another.

Torres

The Golden Gate is suspended on two towers of 227 meters above the water level. There rompenieblas lights atop the towers, as beacons to warn boats and aircraft associated with the existence regarding the connection.

• Specialized Data

The Golden Gate Bridge has two great towers that offer the two primary cables.

Height of tower above-water: 227 m

Tower height above roadway: 152 m

Tower base dimension (each knee): 10 x 16 m

Anchoring of every tower: 64000 t

Load each one of the primary cables of this tower: 56000000 kg

Brunt of two towers: 40200000 kg

Transverse deformation associated with the towers: 0.32 m

Longitudinal bending towers, 0.56 m and 0.46 m

The average liquid depth below the south tower: 34 yards to create support pier for the south tower, the construction workers pumped 35.6 million gallons of water to boost the protection that was first built.

Street

This has six lanes for vehicular traffic, with an estimated width of 27 yards and a level of 7.6 m.

• Deformation bridge, load ability:

The most deviation regarding the cross inside center includes: 8, 4 m

The utmost downward deflection within the center includes: 3.3 m

Optimal upward deviation into the center includes: 1, 77 m

Load capability per linear foot: 1814.4 kg

Cables

anchor cables during building

Hung between two elegant towers, the 2 primary cables regarding the connection evaluating 11, 000 tons each, and so are created by 25, 000 individual cables, anchored to your additional. Besides sustaining the street suspended cables send compression into towers and mooring associated with the bridge at each and every end for the building and possess a length of 2332 meters

Diameter primary cable like the outer carton: 0.92 m

Period of primary cable: 2, 332 m

Total period of galvanized metallic line utilized in the 2 main cables: 129, 000 kilometers

Wide range of galvanized metal cables in a main cable: 27572

Few plans or lines of galvanized steel wire on a main cable: 61

Weight of main cables, suspension system cables and accessories: 22200000 kg

The galvanized wire each one of the main cables were put through a shuttle-type loom, which moved forward and backward and was creating your body associated with cable. The spinning of this primary cables ended up being completed in a few months and 9 times.

Materials

Both beams are just like metal cables and each tower has been utilized approximately 600, 000 rivets

The anchorages tend to be concrete towers.

Rehab

Over the years, sodium and moisture from fog in addition to sea has actually caused the road deck begun to show signs and symptoms of deterioration. Responding, the biggest engineering task because the construction regarding the bridge was done aided by the replacement associated with original deck with lightweight concrete, metal orthotropic stronger asphalt and covered with epoxy

The task, which were held between 1982 and 1986, dropped 12, 300 a great deal of the full total weight of this connection. Has additionally expanded the width associated with the highway running through it, broadening it from 60 to 62 legs by reducing the width of pavements.
